Get the design wrong and you're looking at dusting surfaces, spalled joints, random cracking, and downtime that stops operations cold. This guide walks through how industrial floors are actually engineered, the construction steps that separate a floor that lasts from one that fails, the flooring types worth considering, and the maintenance habits that protect your investment.
Pilot Painting & Construction supports businesses across North Texas with commercial flooring, concrete, and construction services, including floor coatings, polished concrete, and concrete repair for industrial and commercial spaces.
Key Takeaways
- Industrial floors are engineered systems: subgrade prep, reinforcement, and load-specific thickness
- Design decisions (thickness, mix, joints) must be driven by actual loads, not generic assumptions
- Joint layout and surface treatment often determine durability more than raw concrete strength
- Early crack and dusting repairs prevent costly full-slab replacement
What Is Industrial Floor Construction and Why It's Different
Industrial flooring is a structural system engineered for rolling loads, point loads, vibration, and chemical or abrasive exposure. Design has to account for those forces from day one.
The guidance in ACI 360R-10, the industry's reference for slabs-on-ground, covers soil-support systems, jointing, and curling behavior. All of these factors interact under real industrial use.
You'll find this type of flooring in:
- Warehouses and distribution centers
- Manufacturing plants
- Retail and restaurant back-of-house areas
- Cold storage and processing facilities
Key Differences from Standard Concrete Slabs

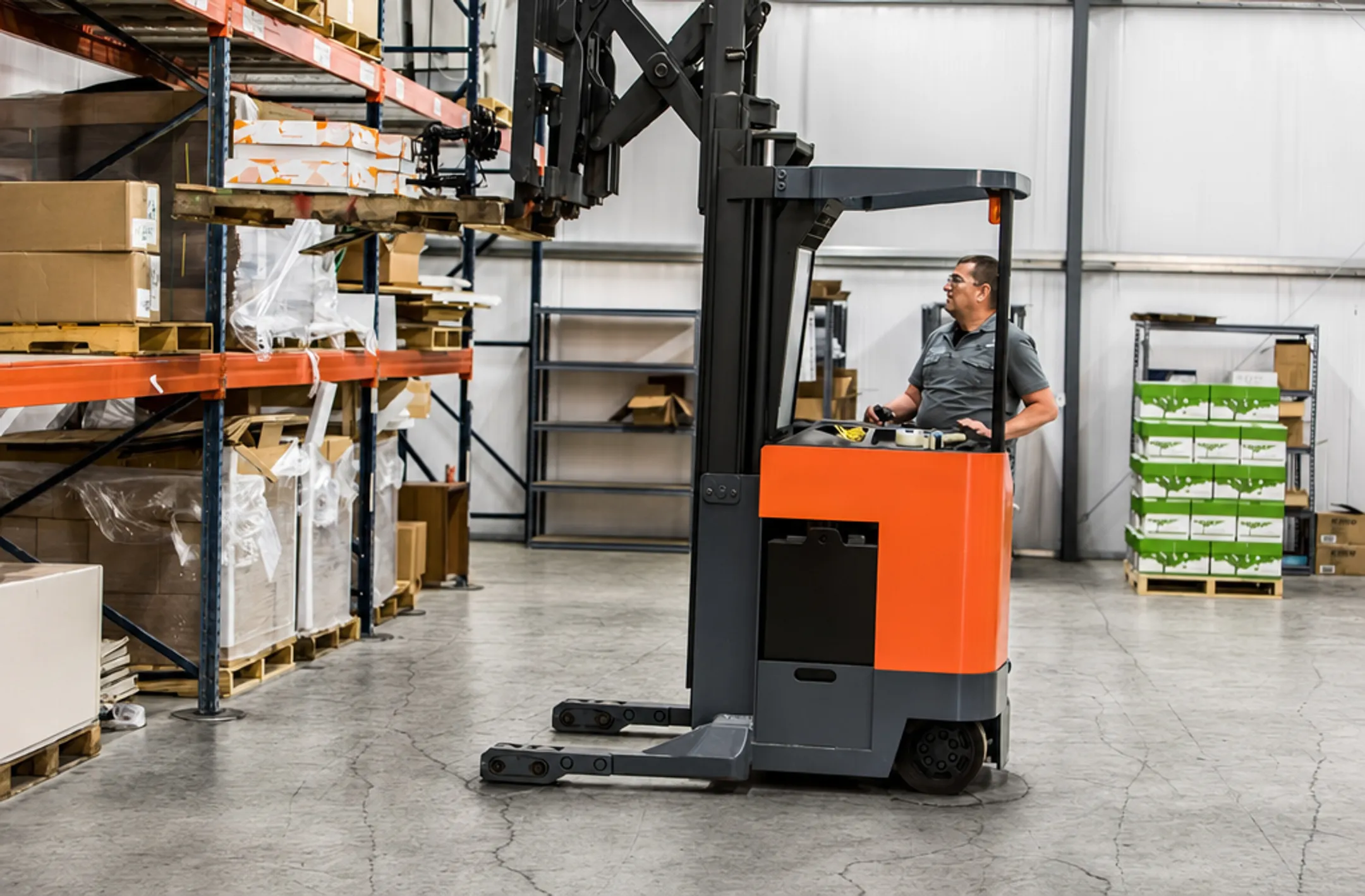

Standard commercial slabs are built for foot traffic and light static loads. Industrial slabs face something entirely different: repetitive wheel loads, concentrated rack-leg pressure, and vibration from equipment.
Those demands reshape design priorities:
- Thickness and reinforcement are calculated from actual load data, not a one-size formula
- Flatness tolerances matter far more, since forklifts and automated equipment need predictable, level travel paths
- Failure consequences extend beyond the floor itself: equipment wear, safety incidents, and operational downtime all trace back to poor slab condition
A cracked or uneven floor is a liability in an industrial setting. It touches your equipment budget, your safety record, and your bottom line.

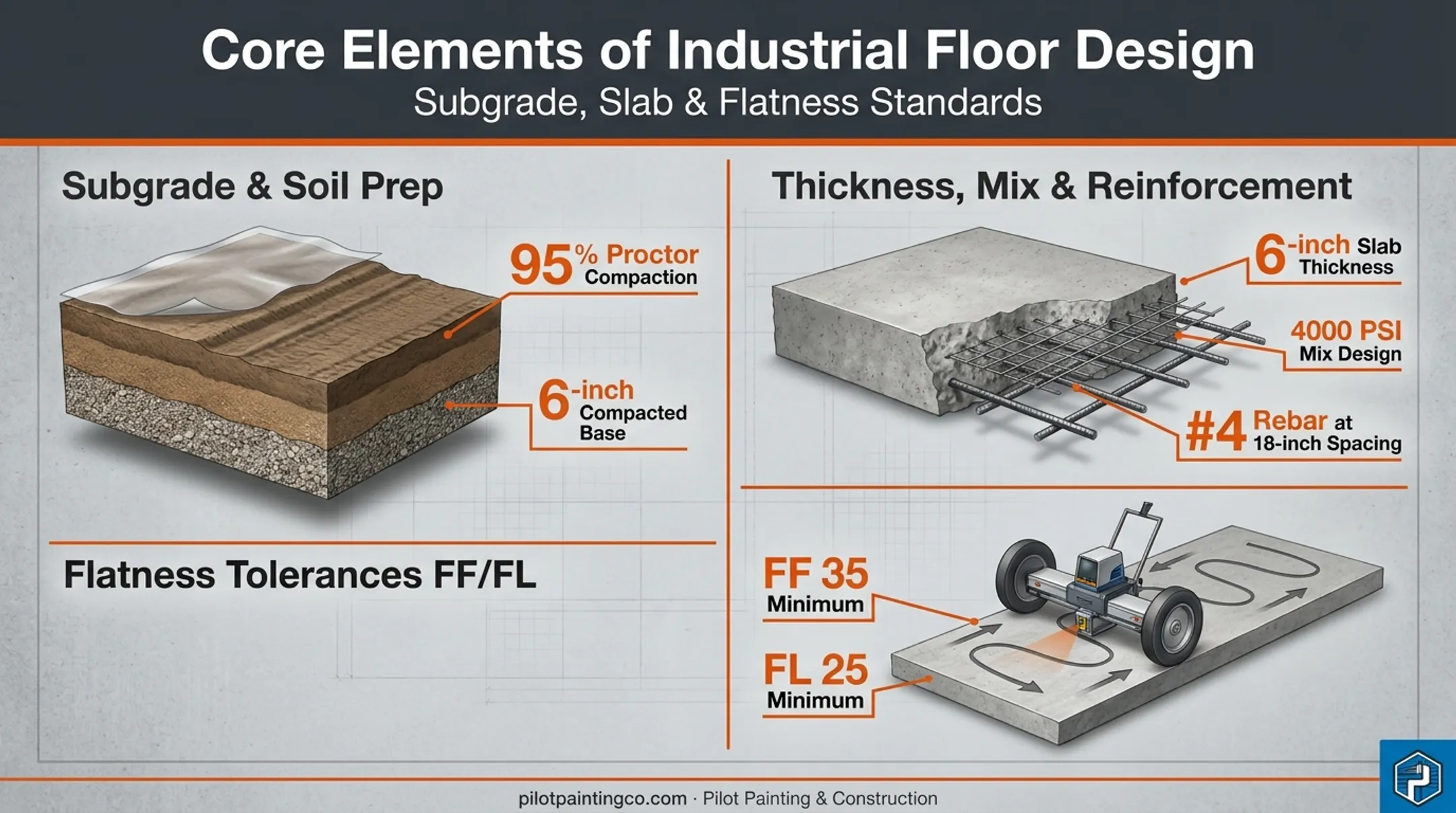

Core Elements of Industrial Floor Design
Before concrete ever gets poured, the design phase determines whether a floor performs for decades or fails within a few years.
Start with the ground beneath it. A geotechnical study establishes soil bearing capacity, water table depth, and compaction requirements. Skip this step and you're gambling on everything built above it.
Thickness, Mix Design, and Reinforcement
Slab thickness isn't a fixed number pulled from a chart. It depends on the specific loads the floor will carry:
- Forklift traffic and axle weights
- Point loads from racking systems
- Distributed loads from stored inventory
- Equipment vibration and impact
A 6-inch slab is a common baseline for light-to-moderate industrial use, but heavier operations require engineering thickness around actual load calculations—not a default chart value.
Concrete mix design matters just as much as thickness. Contractors need to balance strength with workability:
- Water-cement ratio affects both strength and shrinkage potential
- Pushing PSI too high can backfire, increasing shrinkage and curling risk
- The right mix for a given slab depends on the flooring system it will support
Reinforcement options include rebar, welded wire mesh, and steel or synthetic fiber, each suited to different load types and joint spacing strategies. The right choice depends on the slab's design method, not blanket assumptions.
Flatness Tolerances (FF/FL)
FF and FL numbers quantify floor flatness and levelness. For facilities running forklifts or automated equipment along fixed paths, ASTM E1155 favors direct profilometer testing along actual travel paths over random sampling. Measure where the equipment drives, not just anywhere on the slab.

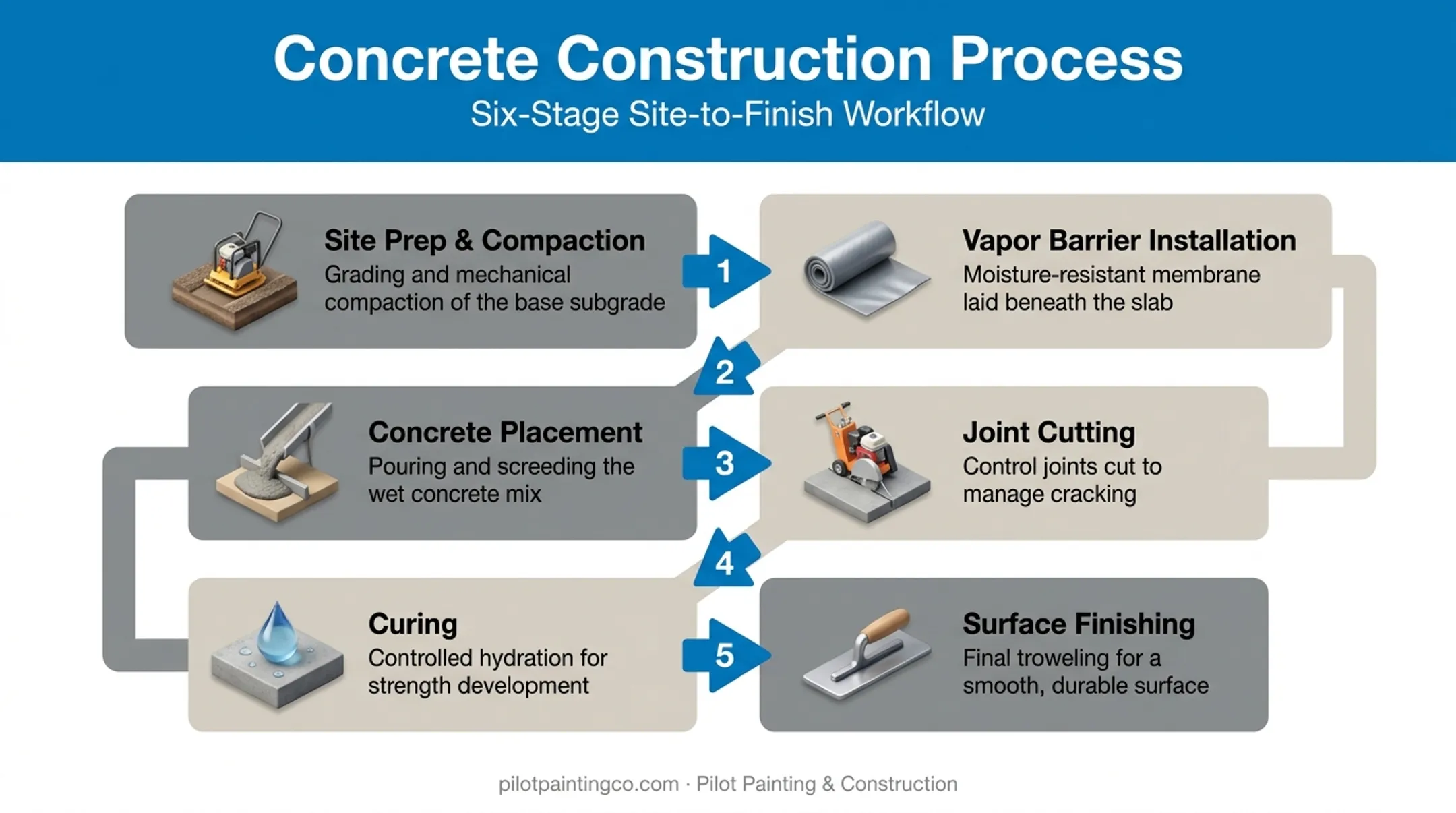

Step-by-Step Industrial Floor Construction Process
Every industrial floor follows a sequence where each step protects the next.
Site preparation and subgrade compaction: This is the foundation of the entire system. Poor compaction here guarantees settlement problems later, no matter how good the concrete above it is.
Vapor barrier installation: A membrane beneath the slab prevents moisture intrusion that can damage coatings and flooring systems installed later. These membranes are tested for permeance, tensile strength, and puncture resistance to handle site conditions.
Concrete placement: Screeding equipment (laser or vibrating) is chosen based on the flatness and consolidation the project specifies. This is a means-and-methods decision, not a fixed rule. Consistency during placement is what makes flat, durable floors possible.
Joint cutting: Timing and spacing control where the slab cracks. Cut too late and random cracking sets in before the joints can do their job.
Curing: Rushed curing is one of the most common causes of weak, soft surfaces. Proper curing time and method protect the surface layer from developing a soft, dust-prone skin.
Surface finishing: Hard troweling, dry shake hardeners, and densifiers are applied after placement to boost abrasion resistance and surface hardness.
Dusting often traces back to one mistake: finishing while bleed water is still present. Working that water into the top quarter-inch of the surface creates a weak, high-water-content layer that powders under traffic almost immediately.
Choosing the Best Flooring Type for Industrial Use
There's no single "best" flooring system. Choice depends on traffic, chemical exposure, and cleanability requirements.
| Flooring Type | Best For | Considerations |
|---|---|---|
| Sealed/hardened concrete | General warehouse, distribution | Cost-effective, durable under rolling loads |
| Epoxy coatings | Food/beverage, pharmaceutical, chemical exposure | Cleanable, chemical-resistant surface |

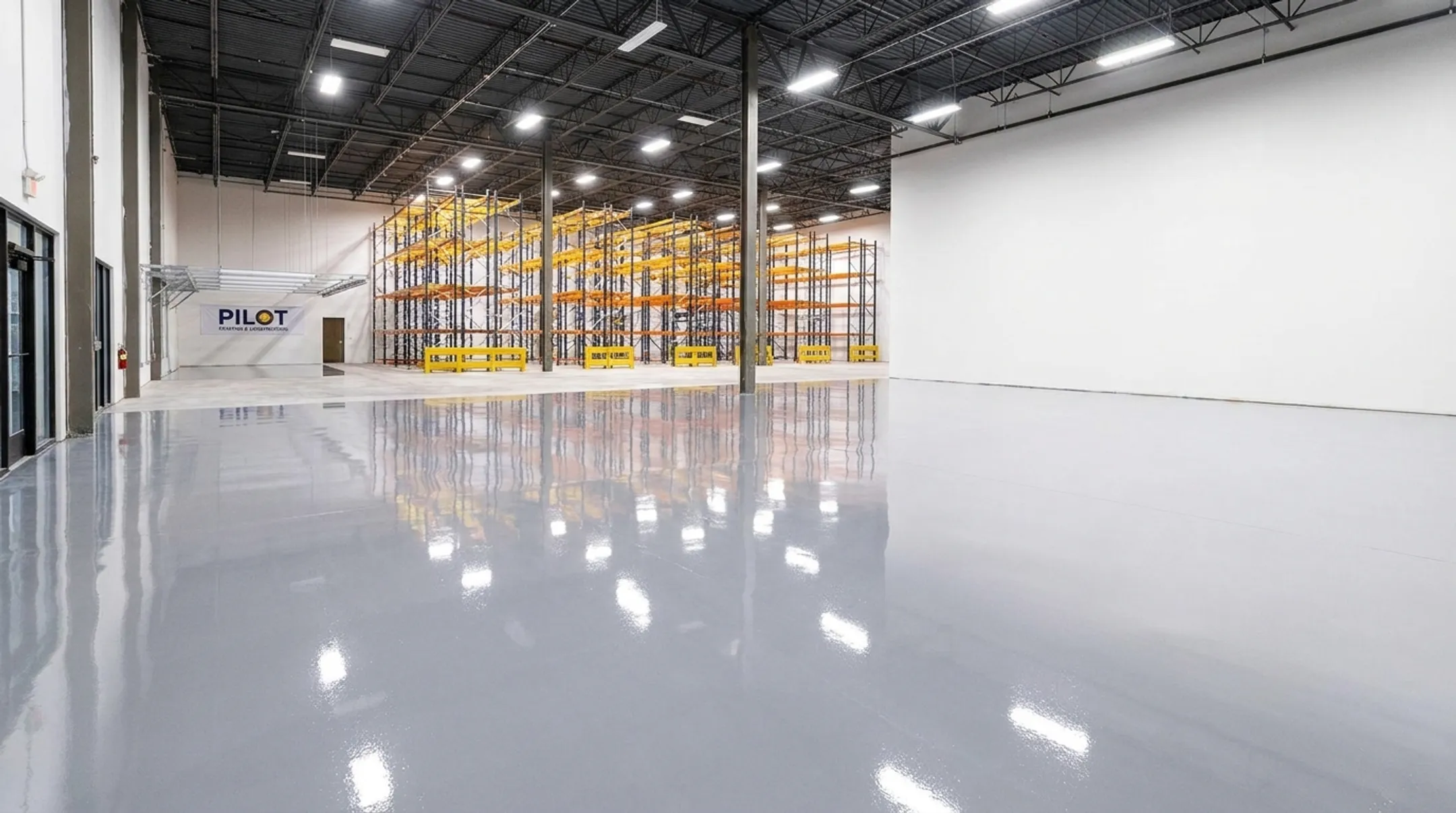

| Polished concrete | Retail-adjacent industrial, showrooms | Improved appearance, moderate durability |
Regulated environments set hard requirements, not optional upgrades:
- Food processing: floors must be easy to clean and kept in good repair
- Pharmaceutical aseptic areas: smooth, hard, cleanable surfaces
Those rules often point to coated or specialized systems rather than bare concrete.
For general warehouse or manufacturing without heavy chemical exposure, sealed or hardened concrete usually covers the load path and wear needs without the cost of a full coating system.
Pilot Painting & Construction works with commercial and industrial property owners across North Texas on flooring and concrete solutions. That includes polished concrete and commercial floor coatings built for heavy-use spaces, matched to how the floor actually operates day to day.
Common Problems and Preventive Maintenance
Catching floor problems early is far cheaper than replacing a slab.
Warning signs to watch for:
- Dusting — Loose powder on the surface that scratches easily; usually traces back to poor finishing or inadequate curing
- Joint spalling — Chipped or broken edges along control joints
- Random cracking — Cracks appearing outside planned joint lines
- Delamination — Surface layers separating from the slab below

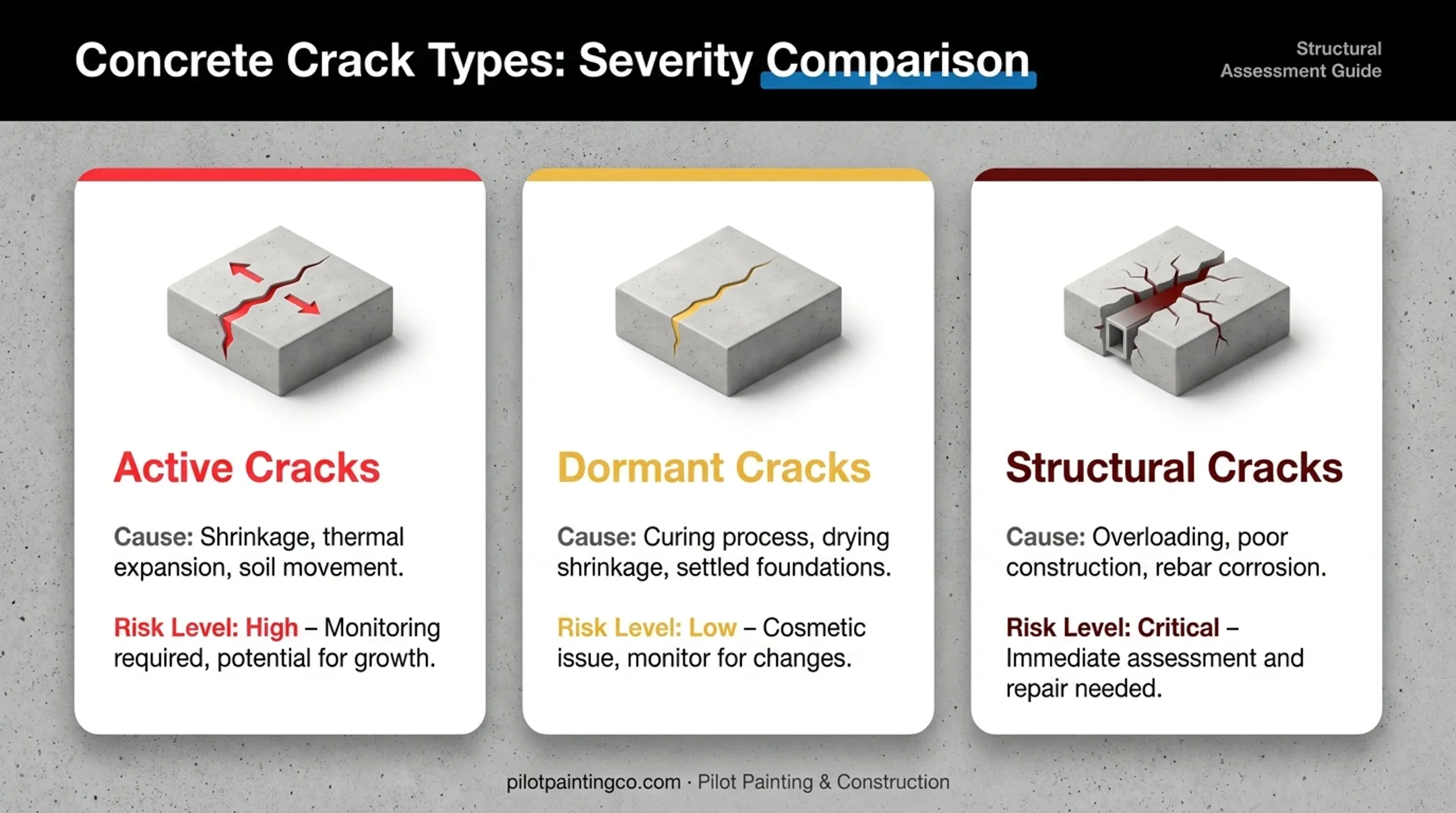

Not every crack is a red flag, though. Industry terminology distinguishes three types:
- Active cracks — Movement is ongoing
- Dormant cracks — Stable and low-risk
- Structural cracks — Caused by loading or external forces
Knowing which type you're dealing with changes the repair approach entirely.
Routine maintenance that pays off:
- Inspect joints regularly for wear or debris intrusion
- Reseal joints before water or contaminants work their way in
- Repair small cracks immediately rather than letting them spread
- Address surface dusting before it accelerates into deeper deterioration
Neglect here doesn't just damage the floor. It drives up equipment maintenance costs and creates safety hazards for anyone working on that surface. Pilot Painting & Construction offers concrete repair and surface restoration for commercial and industrial floors already showing wear. The goal is to extend slab life and avoid a full replacement.
Frequently Asked Questions
What is the best type of flooring for industrial use?
It depends on your traffic and exposure. Sealed or hardened concrete works well for general warehouse use, while epoxy coatings suit chemical exposure or food-grade environments requiring easy cleaning.
How thick should an industrial concrete floor be?
Six inches is a common starting point for light-to-moderate use, but thickness should scale with actual load requirements—forklift weight, racking, and equipment traffic all factor in.
How long does an industrial floor last before needing repair?
With proper design, reinforcement, and consistent maintenance, industrial floors can perform for decades. Neglecting joints, cracks, or surface wear shortens that lifespan considerably.
What causes cracking and dusting in industrial floors?
Poor subgrade preparation, weak concrete mix design, inadequate curing, and skipped surface treatments are the most common culprits behind both issues.
Can a damaged industrial floor be repaired instead of replaced?
In most cases, yes. Cracks, joint wear, and surface dusting caught early can typically be repaired without a full slab replacement.
How much does industrial floor construction typically cost?
Costs vary widely based on thickness, reinforcement, and finish requirements. The best approach is requesting a project-specific quote based on your facility's actual needs.
