Cracks form for several reasons: shifting soil, moisture swings, temperature changes, or a slab that wasn't installed or cured properly. Some are cosmetic. Others signal a bigger problem underneath.
This guide covers the common crack types, a step-by-step DIY repair process, how to decide between repair and replacement, and when it's time to call a professional like Pilot Painting & Construction.
TL;DR
- Hairline cracks are usually cosmetic; wide, offset, or spreading cracks may point to structural settling
- Small, stable cracks are DIY-friendly with the right filler
- Repair in four steps: clean, prep, fill, and cure
- Recurring or growing cracks need professional evaluation before patching again
What Causes Concrete Floor Cracks?
Concrete cracks for a mix of predictable reasons. Even well-poured slabs shrink slightly as they cure, and that shrinkage alone accounts for a huge share of hairline cracking. The American Concrete Institute is blunt about this: crack-free floors are unrealistic, even with good design and construction, because drying shrinkage cannot typically be eliminated.
North Texas adds another layer to the problem: expansive clay soil. This soil type swells when wet and shrinks when dry, and that movement transfers directly to whatever sits on top of it. The Texas Department of Transportation identifies Texas as having some of the country's most expansive soils. Risk rises with soil-moisture swings and high-plasticity clays that flex a lot as they wet and dry.
Other common culprits:
- Water infiltration that keeps a crack (or the subgrade beneath it) chronically wet
- Heavy or concentrated loads, such as parked vehicles or storage racks, that stress a slab beyond its designed capacity
- Freeze-thaw cycles, which are less severe here than up north but still relevant for exterior patios and garage aprons
Not all cracks are equal. Hairline cracks are typically cosmetic. Wide cracks, cracks where one side sits higher than the other, or cracks that keep growing month over month often point toward settling.
Left alone, water works its way into the gap, freeze-thaw cycling widens it further, and a minor cosmetic issue can turn into a structural or safety concern.

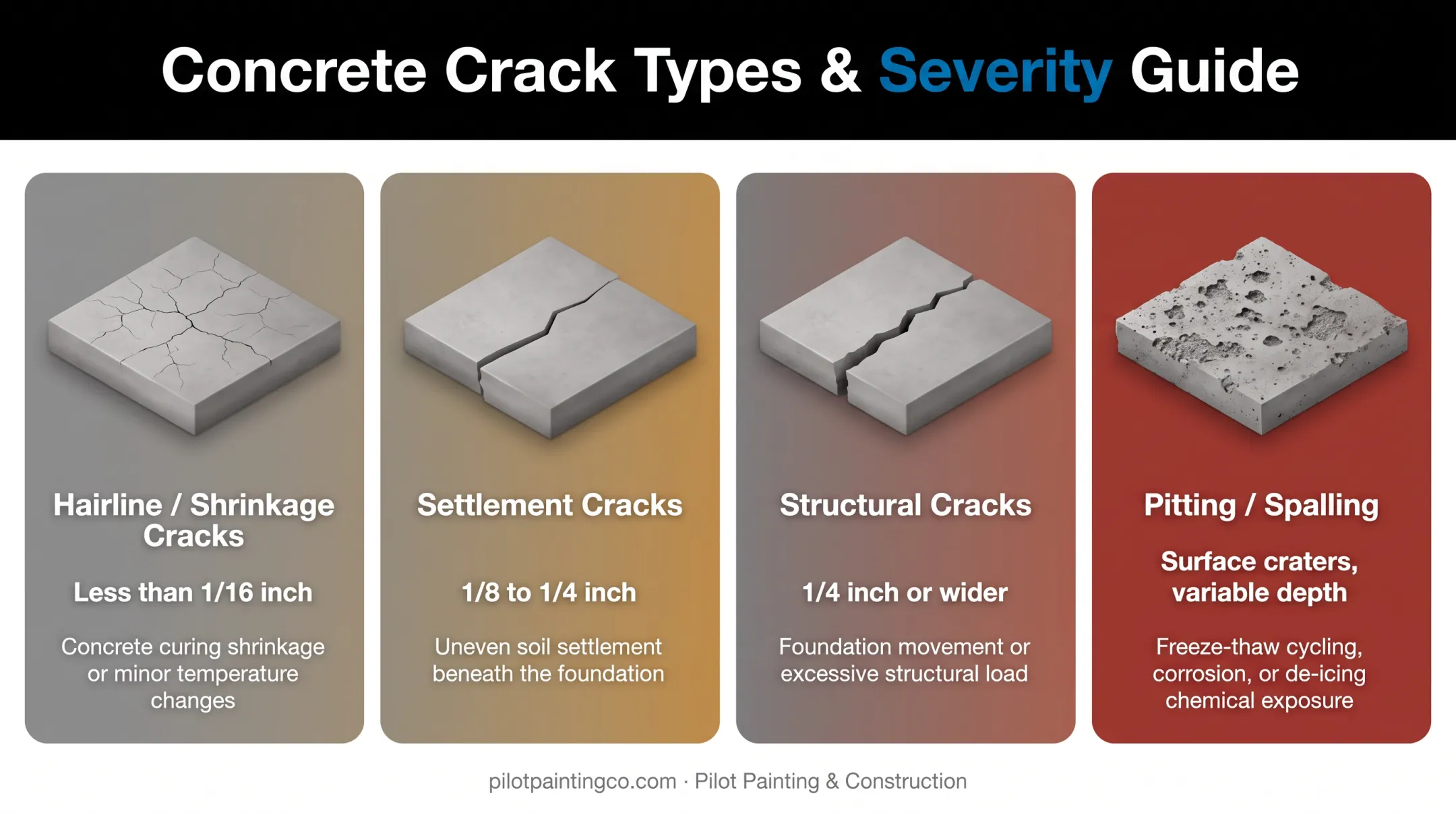

Common Types of Concrete Floor Cracks
Most cracks and surface damage you'll encounter fall into four categories. Knowing which one you're looking at determines your entire repair approach.
Hairline/Shrinkage Cracks
- Symptoms: Thin, web-like surface cracks, often less than 1/16 inch wide
- Likely cause: Normal curing shrinkage or minor surface stress
These are the most common type and rarely a cause for concern.
Settlement Cracks
- Symptoms: Wider cracks, frequently with one side sitting higher than the other
- Likely cause: Soil movement or a sub-base that wasn't properly compacted before the slab was poured
Offset edges usually mean the movement is under the slab, not just on the surface.
Structural Cracks
- Symptoms: Cracks wider than 1/4 inch, running through the full slab, or growing over time
- Likely cause: Foundation movement, heavy loads, or expansive soil pressure
Note: ACI research cautions against treating 1/4 inch as a hard rule. Crack width varies a lot, and width alone doesn't confirm structural failure — but it's a solid screening threshold for "get this looked at."

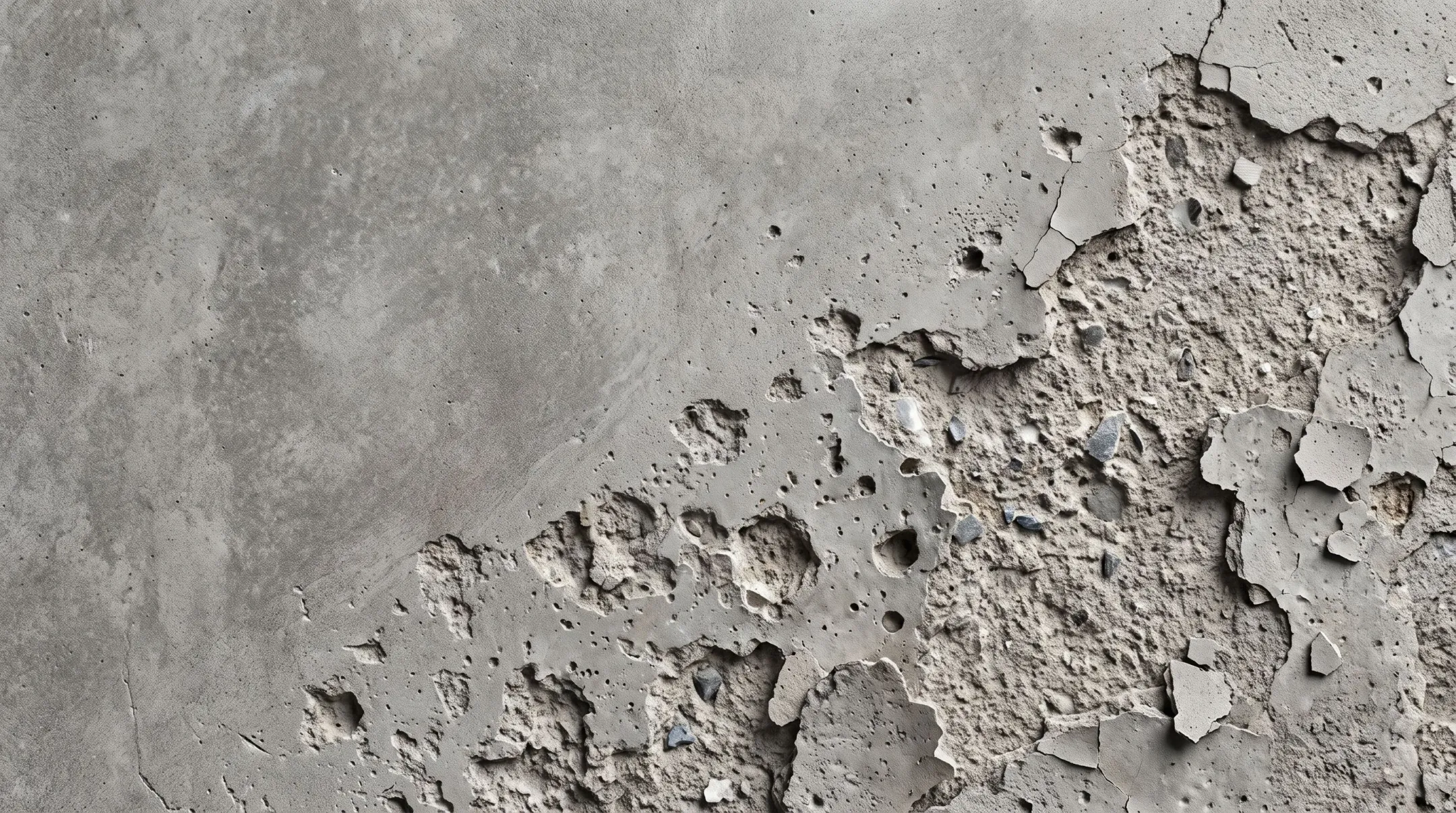

Pitting and Spalling
- Symptoms: Small craters, flaking, or a rough, broken surface rather than a clean line
- Likely cause: Chemical exposure, deicing salts, or freeze-thaw damage
Left untreated, this damage usually spreads as moisture and salts keep working into the surface.

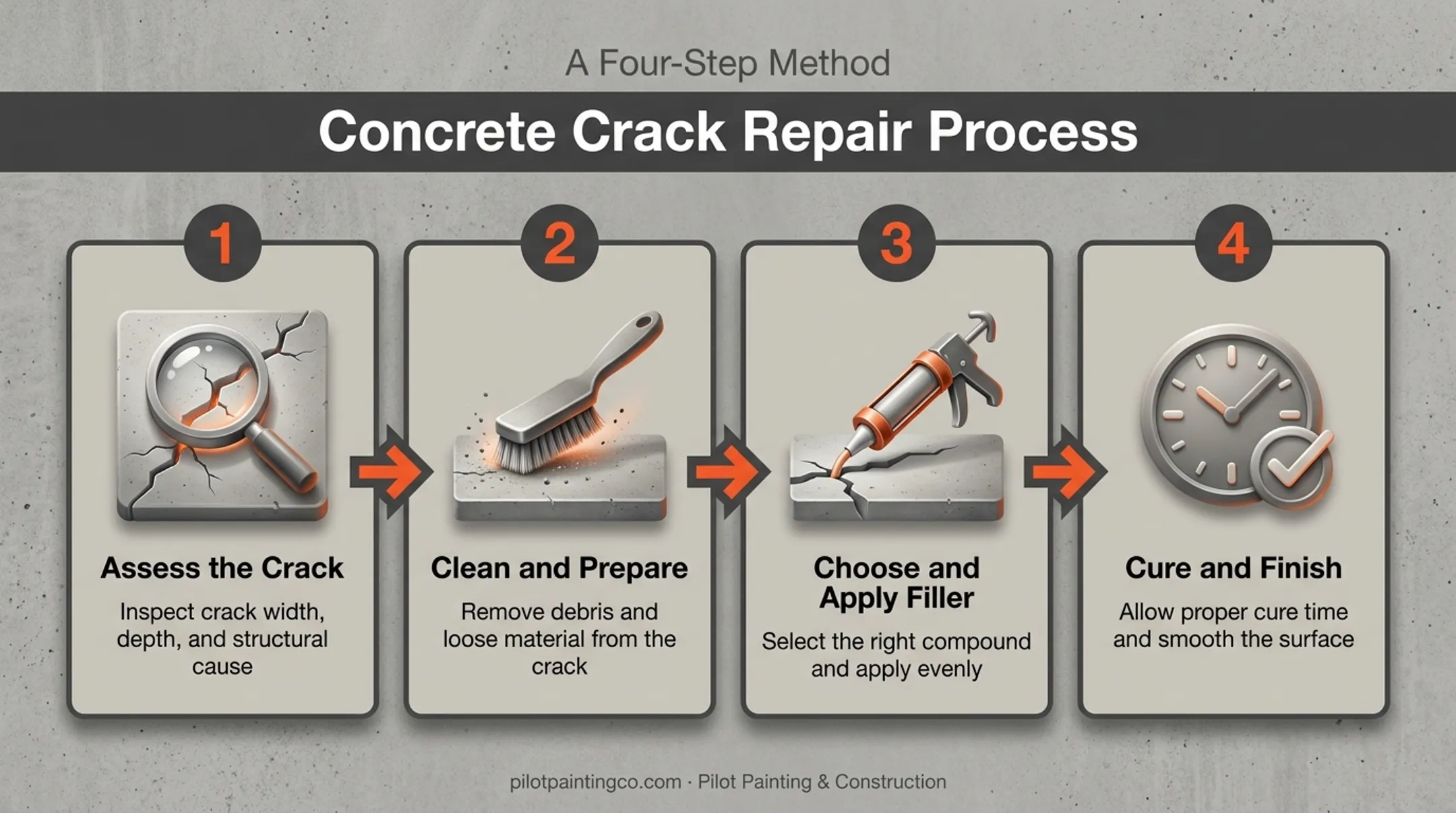

How to Repair Concrete Floor Cracks (Step-by-Step)
Before grabbing any filler, figure out exactly what you're dealing with. Crack width, depth, and stability determine which repair method actually works — and skipping this step is the number one reason DIY repairs fail.
Step 1: Assess the Crack
- Measure the width and depth. Note whether it's hairline, medium, or wide.
- Check if both sides of the crack are level. A height difference usually means settlement.
- Watch the crack for a few weeks if possible. Is it actively growing, or has it been stable?
Step 2: Clean and Prepare the Crack
- Use a chisel or angle grinder to remove loose, crumbling concrete. Slightly widening narrow cracks helps filler adhere better.
- Vacuum out debris, then scrub with a concrete cleaner and wire brush.
- For deep cracks, insert a foam backer rod first. This controls how deep the filler sits and prevents it from sinking too far into the gap.
Step 3: Choose and Apply the Right Filler
Not every crack takes the same product:
| Crack Type | Recommended Filler |
|---|---|
| Hairline | Liquid/acrylic crack filler |
| Medium, with movement | Self-leveling polyurethane sealant |
| Wide or cosmetic | Patching compound |
| Structural | Epoxy injection |
Structural cracks need epoxy injection, not a surface filler—and many of those jobs are best left to a pro.
For reference, products like QUIKRETE Concrete Repair are rated for cracks up to 1/2 inch. Cracks narrower than 1/8 inch usually need widening before filling.
Application basics:
- Pour or gun the filler into the prepared crack
- Smooth with a putty knife or trowel
- For deeper cracks, build in layers and let each partially cure before the next
Step 4: Cure and Finish
- Cure times vary by product, from 1-2 hours for some liquid repairs to 3-5 days for self-leveling sealants.
- Sand or blend the patch with the surrounding concrete if you want a seamless look.
- Keep foot and vehicle traffic off the repaired area until it's fully cured. Rushing this step is a common reason repairs fail early.
Should You Repair or Replace the Slab?
The right call depends on crack severity, structural risk, and how much a repair actually costs versus a full replacement.
Small hairline cracks:
- Repair: DIY filler works fine
- Replace: Not necessary unless numerous cracks affect a large area
Cracks wider than 1/4 inch or uneven:
- Repair: Epoxy injection can work if the crack is stable
- Replace: Recommended if the slab keeps shifting or shows ongoing structural stress
Recurring or spreading cracks:
- Repair: A filler alone only masks the symptom and won't stop the underlying movement
- Replace: Usually the better long-term investment
If a crack keeps coming back after you've patched it, the underlying cause is still active. A professional evaluation is worth the cost at that point.
Pilot Painting & Construction handles concrete repair and surface restoration for commercial properties across DFW and North Texas, including offices, retail spaces, restaurants, and industrial facilities. The team can help you decide whether a targeted repair or a full slab replacement makes more sense.
Common Mistakes and Prevention Tips
A solid repair can still fail when prep is skipped, the wrong product is used, or the cause of the crack is left alone. These are the mistakes that show up most often on commercial floors.
Mistakes we see often:
- Skipping the cleaning step, which leads to poor adhesion and early filler failure
- Using liquid crack filler on a wide structural crack that needs a different repair method
- Patching a crack without fixing the moisture source behind it
- Ignoring safety concerns when a crack shows signs of structural movement
Once the crack is fixed, a few maintenance habits lower the odds it returns.
Prevention tips:
- Seal concrete floors periodically — follow the specific sealer's technical data sheet rather than a generic timeline
- Maintain proper drainage so water moves away from slabs, not toward them
- Avoid parking heavy equipment or vehicles on unsupported slab sections
- Schedule periodic inspections, especially if your property sits on expansive clay soil common throughout North Texas
Frequently Asked Questions
What is the best way to fill cracks in concrete floors?
Hairline cracks are best filled with a liquid crack filler. Wider cracks generally need a self-leveling sealant or patching compound, depending on whether you need flexibility or a cosmetic finish.
Can I pour concrete over old cracked concrete?
Yes, with proper bonding agents and adequate thickness for the overlay. However, if the underlying cause of the crack isn't addressed, it can eventually telegraph through the new surface.
How long does concrete crack filler take to dry?
Dry times range from a couple of hours to several days, depending on the product. Liquid fillers often set within hours, while self-leveling sealants can take 3-5 days to fully cure.
Can I fix a concrete floor crack myself, or do I need a professional?
Small, stable cracks are generally DIY-friendly with the right filler. Wide, shifting, or structural cracks warrant a professional assessment before you spend money on a fix that won't hold.
Why do concrete floors keep cracking even after repair?
Recurring cracks usually mean the root cause — moisture, soil movement, or a structural issue — was never resolved. A filler only addresses the surface, not what's causing it to move.
Is a cracked concrete floor a sign of foundation problems?
Sometimes. Many cracks are purely cosmetic. But wide, growing, or offset cracks can indicate foundation settlement, and that's worth a professional inspection rather than a guess.
